Column Type Size Nulls Auto Default Children Parents Comments
tagchannelid int4 10
tagmodelid int4 10  √  null
tagmodels.tagmodelid $1 R
channelnumber int4 10  √  null
channelname varchar 40  √  null
datatype varchar 40  √  null
max float4 8,8  √  null
min float4 8,8  √  null
bits int4 10  √  null
resolution float4 8,8  √  null
accuracy float4 8,8  √  null
comment varchar 255  √  null

Table contained 0 rows at Wed Dec 27 13:21 PST 2017

Indexes:
Column(s) Type Sort Constraint Name
tagchannelid Primary key Asc tagchannels_pkey

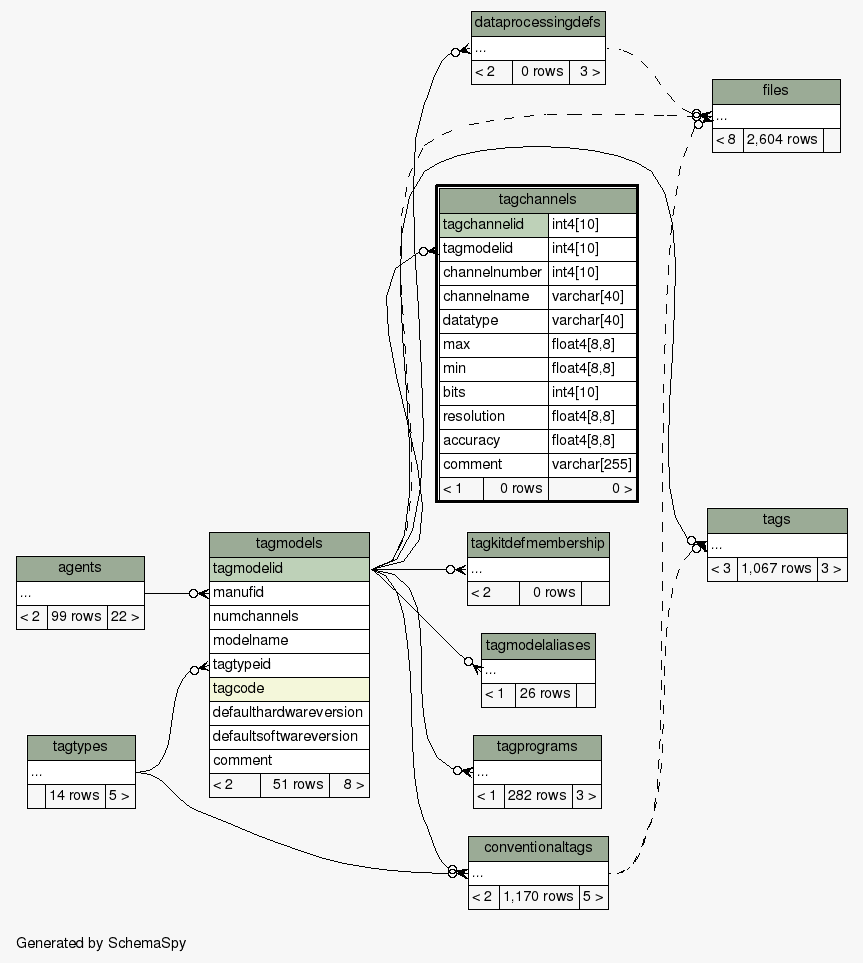

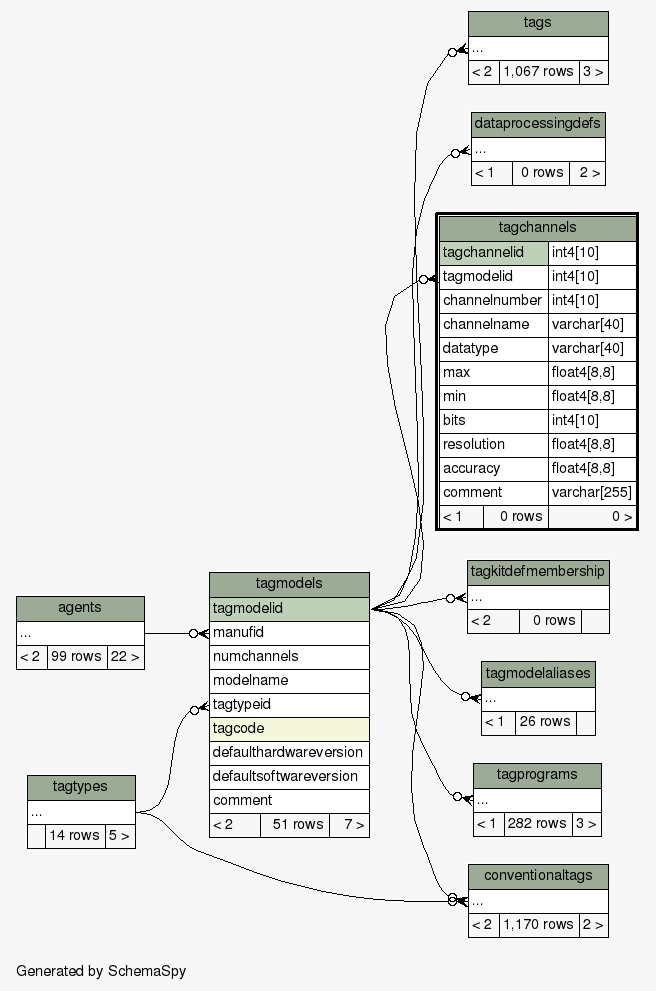

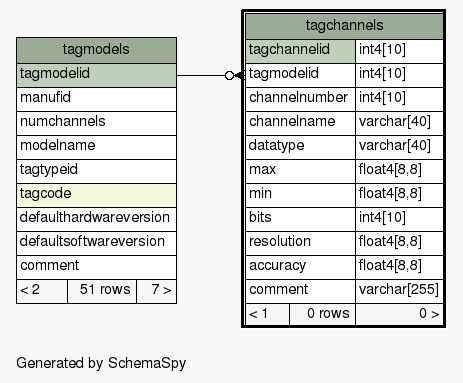

Close relationships  within of separation:
